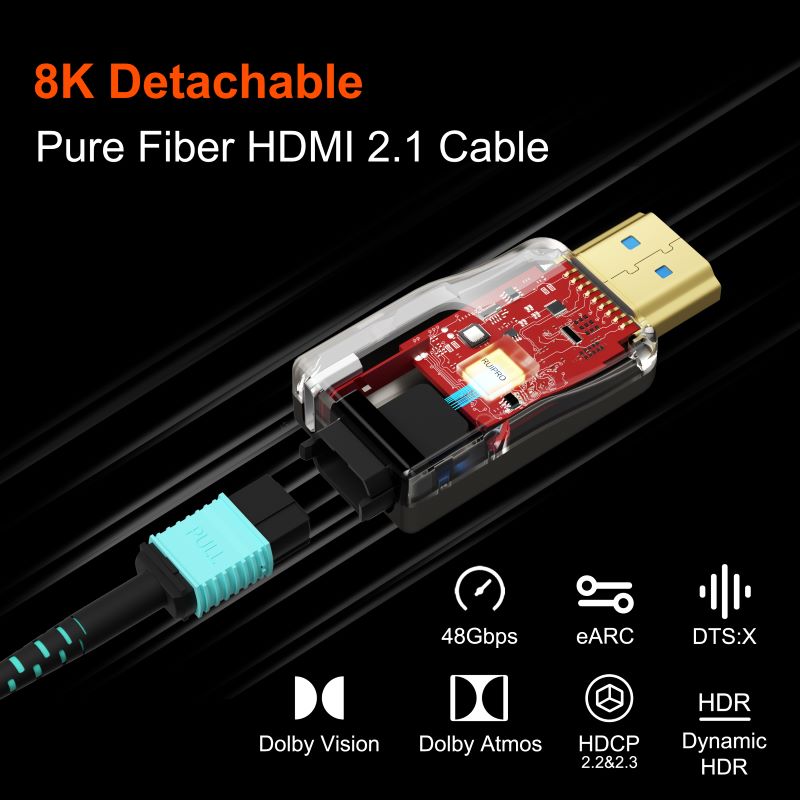

Ruipro Gen4a Detachable 8K HDMI Cable

RUIPRO, releases our new PURE FIBER ‘GEN4A’(generation4a) of 8K HDMI2.1 compliant HDMI interconnection solutions which is DETACHABLE and available in lengths up to 300m.

The RUIPRO GEN4A is poised to completely replace the current fiber HDMI cables on the market. This is truly a revolutionary product. It fully meets the demanding bandwidth requirements of HDMI 2.1, including uncompressed mode, 4K120HZ, e-ARC and up to 300 meters. Backwards compatible with HDMI 2.0, 1.4, etc.

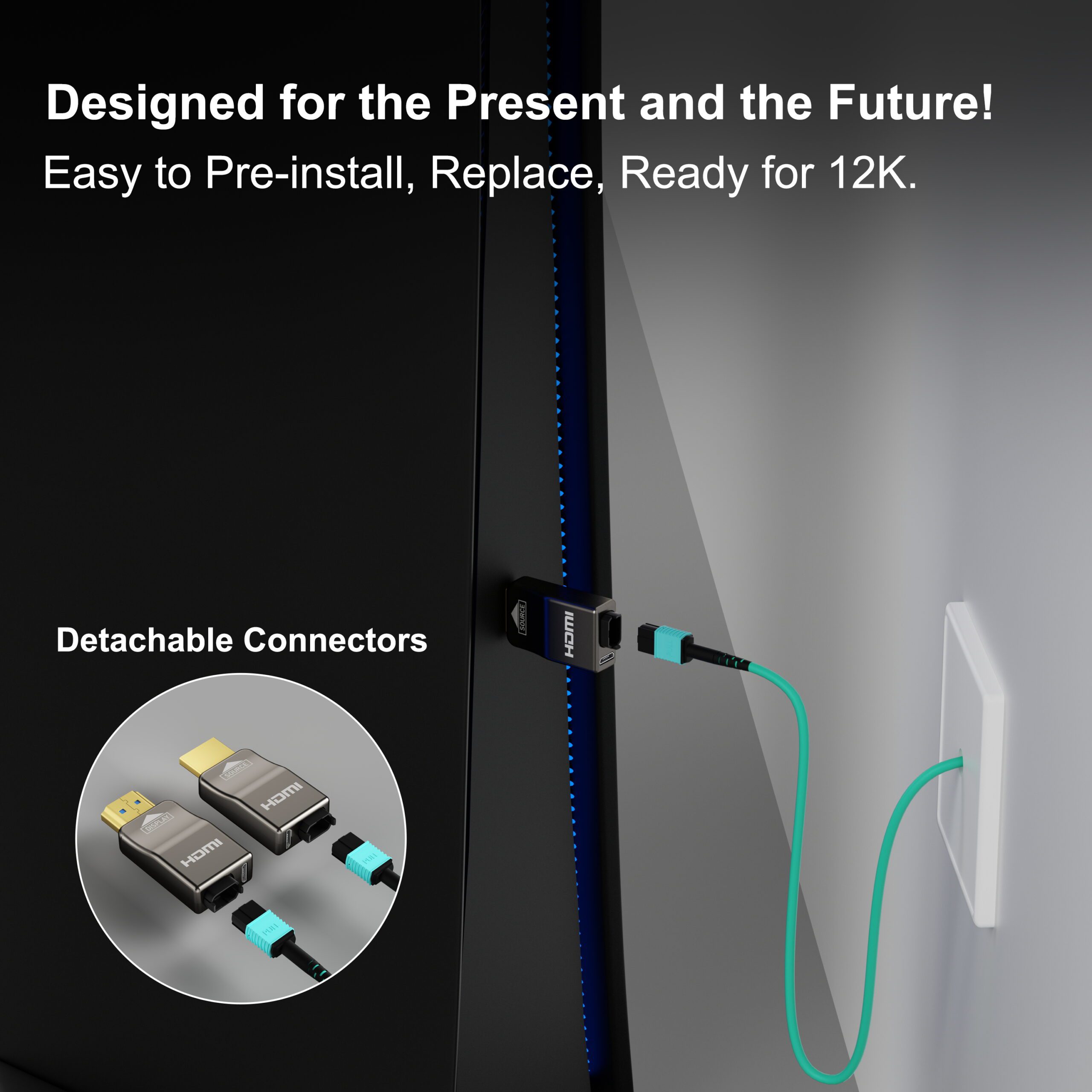

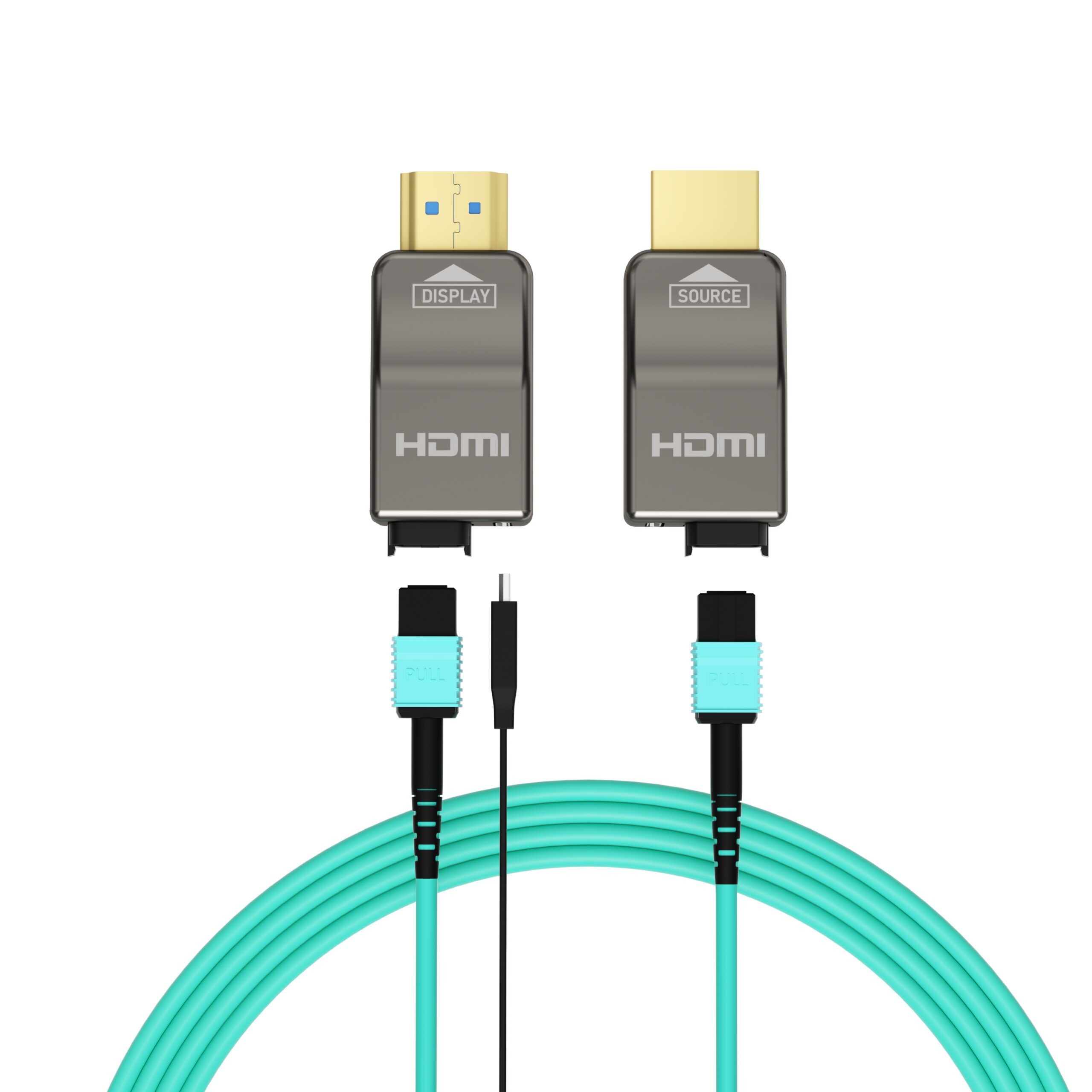

The GEN4 adopts a detachable HDMI Source end and Display end, with a multi-mode bidirectional fiber optic cable (7-core wires) connecting them. For construction and installation over long distance, fiber optic cables can be pre-installed. The MOP connector of the optical cable is small and has strong tensile strength, making the installation of the conduit easier, safer, and more convenient. Meanwhile, the HDMI Source end and Display end, which can be installed later, can easily correct installation errors and troubleshoot issues. However, conventional fiber optic HDMI cables on the market may cause significant trouble and economic losses in the event of installation errors or defected. The Display end of the RUIPRO GEN4A is externally powered by USB and only needs to be plugged into the USB port of the device with a stable 5V power supply. In contrast, conventional fiber optic HDMI cables in the market require power supply from the HDMI port, which may cause damage to the device and may not work on some non-standard designed/manufactured HDMI ports.

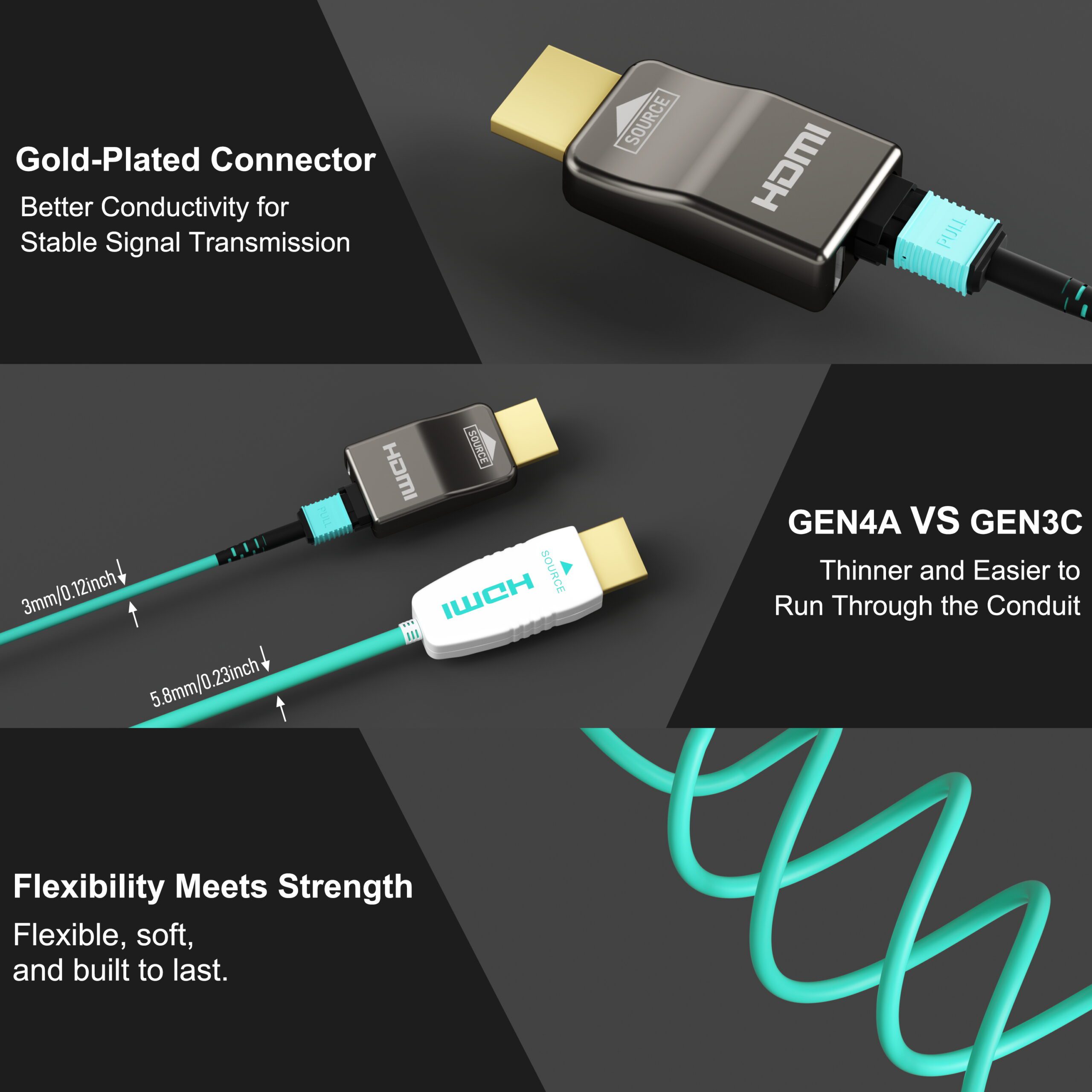

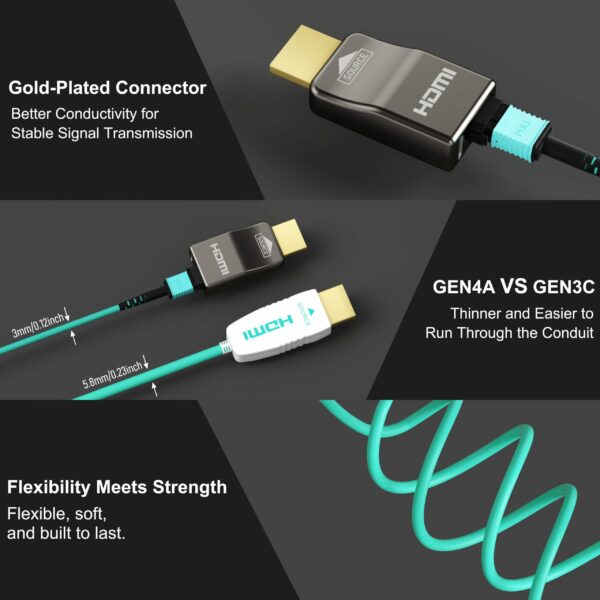

The RUIPRO GEN4A 8K connection solution fully meets the HDMI 2.1 specification requirements. Its fiber optic cable is sturdy, flexible, thinner, and lighter, coupled with small and powerful transmitting and receiving ends, it offers a brand new optical connection experience. The RUIPRO GEN4A is a great boon for audio and video
enthusiasts and engineering installers. Pre-installed fiber optic cables can make future 12K updates easier.

KEY FEATURES

• Compatible with HDMI 2.1 standard and backwards compatible with HDMI2.0/1.4.
• Up to 300m long run for date rate 48Gbps(12Gbps/ Channelx4Channel).
• Supports 4K/ 8K compressed and uncompressed mode.
• Supports SDR, HDR, Dynamic HDR (HDR10+ and DV), ARC, e-ARC, VRR, ALLM, QTF, QMS, CEC.
• Supports resolution up to 8K@60Hz, 4K120HZ and supports HDCP1.4/2.2/2.3.
• Supports computer resolutions to 5K/100-120p 4:4:4 10Bit and 10K/24-30p 4:4:4 10Bit
• Bi-directional fiber cable with 7 optic wires ( 50/125 um OM3)
• Plug and Play, no loss of signal, EMI-FREE.  CE, ROHS, REACH certified.

NOTES

• HDR: High-Dynamic Range; ALLM: Auto Low Latency Mode
• e-ARC: Enhanced Audio Return Channel
• QFT: Quick Frame Transport; QMS: Quick Media Switching; VRR: Variable Refresh Rate 
• MPO: Multi-fiber Push On
• The RX (Display) end must be connected using the 5V USB cable. Please note that some source devices may not
  provide sufficient power for the cable to function properly. Therefore, also ensure that you connect the included USB cable
  to the USB port of the TX (Source) end device.
