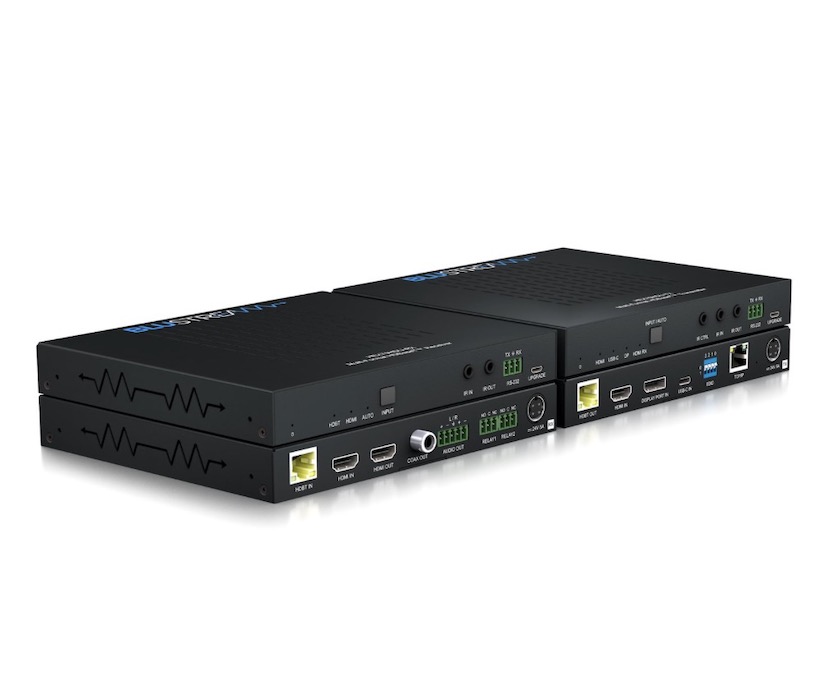

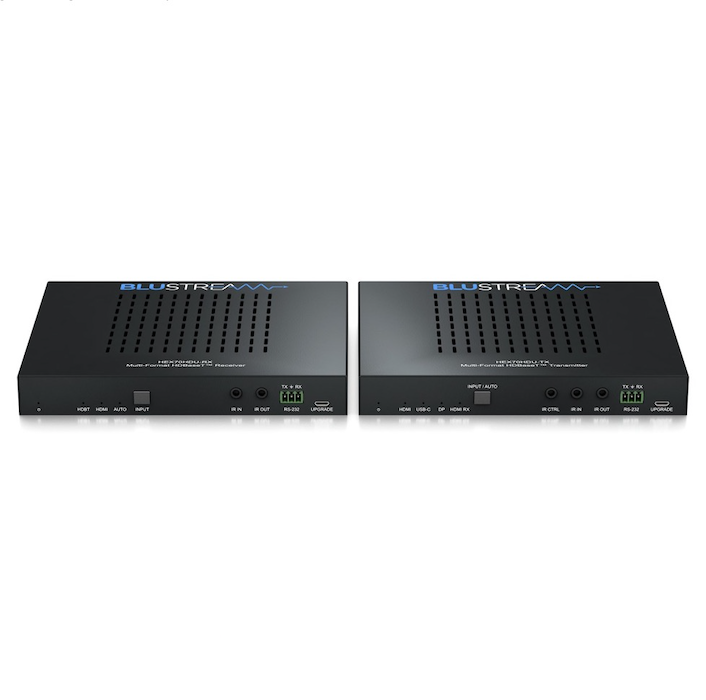

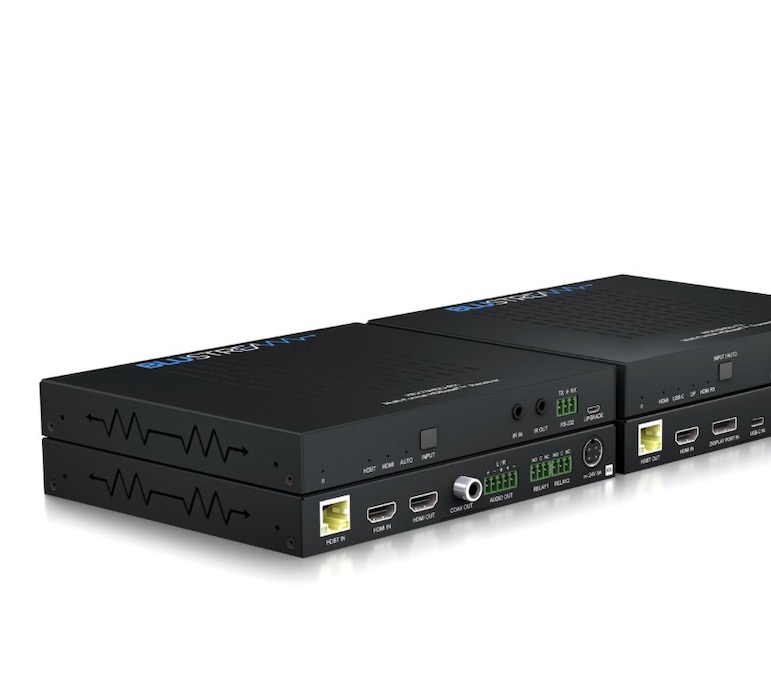

Blustream Extender HEX70HDUK-Kit

• Advanced HDBaseT™ technology offering distribution of video and audio over a single CAT cable

• Advanced Colour Space Conversion (CSC) supports HDMI 2.0 18Gbps specification including HDR

• Features 1 x HDMI, 1 x USB-C and 1 x DisplayPort™ input on the HDBaseT™ transmitter with manual or auto source selection

• Features 1 x local HDMI input on the HDBaseT™ receiver for connection of a source local to the display

• Supports 4K 60Hz 4:4:4 UHD video up to 40m

• Extends HDMI 1080p up to a distance of 70m

• Supports all known HDMI audio formats including Dolby TrueHD, Atmos and DTS-HD Master Audio transmission

• Supports USB Type C up to 4K UHD 60Hz 4:4:4* (DP1.2 with 60W charging capability)

• Supports DisplayPort™ up to 4K UHD 60Hz 4:4:4, 4K 30Hz 4:4:4 DP1.2

• Audio breakout to analogue L/R audio and Coaxial digital (S/PDIF) outputs concurrently

• Supports bi-directional PoC (Power over Cable) to power extenders from either transmitter or receiver end

• Bi-directional IR pass-through

• Auto display on / off feature allowing control of display at the HDBaseT™ receiver via CEC or RS-232

• Web interface module for control and configuration of HEX70HDU-KIT

• Control via front panel, IR, RS-232 or TCP/IP

• Advanced EDID and HDCP management

  *USB-C video support is limited to 4K 60Hz 4:2:0 when charging feature is activated by the source device

Specifications

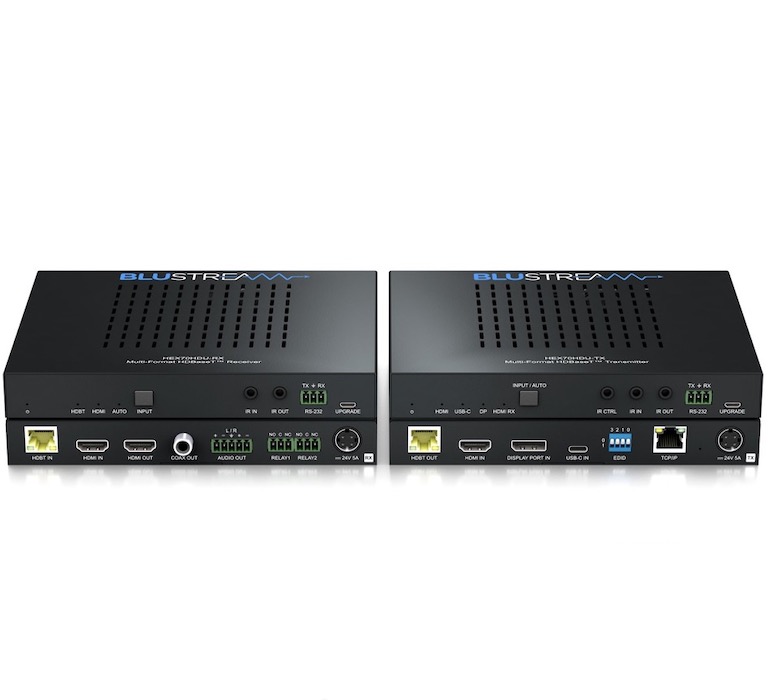

HEX70HDU-TX:

• Video Input Connectors: 1 x HDMI Type A, 19-pin, female, 1 x USB-C Type C, 1 x DisplayPort™

• Video Output Connectors: 1 x HDBaseT™ RJ45 connector

• RS-232 Serial Port: 1 x 3-pin Phoenix connector

• TCP/IP Control: 1 x RJ45, female

• IR Input Ports: 2 x 3.5mm stereo jack (1 x switching control, 1 x IR pass-through)

• IR Output Ports: 1 x 3.5mm mono jack

• EDID: 4-pin DIP switch

• Product Upgrade: 1 x Micro USB, female

• Casing Dimensions (W x H x D): 175mm x 24mm x 155mm

  HEX70HDU-RX:

• Video Input Connectors: 1 x HDMI Type A, 19-pin, female, 1 x HDBaseT™ RJ45 connector

• Video Output Connectors: 1 x HDMI Type A, 19-pin, female

• RS-232 Serial Port: 1 x 3-pin Phoenix connector

• Relay Control: 2 x 3-pin Phoenix connector

• IR Input Ports: 1 x 3.5mm stereo jack

• IR Output Ports: 1 x 3.5mm mono jack

• EDID: 4-pin DIP switch

• Product Upgrade: 1 x Micro USB, female

• Casing Dimensions (W x H x D): 175mm x 24mm x 155mm

• Power Supply: 24V/5A DC

• Operating Temperature: 32°F to 104°F (-5°C to +55°C)

• Storage Temperature: -4°F to 140°F (-25°C to +70°C)
